Super professional tile cutter “TO PUSH” for diagonal and straight cuts on single-double fired ceramic and porcelain stoneware tiles.
Carriage in aluminium with two ball-bearings for getting a perfect sliding and top precision.
The goniometric square can be rotated on both the directions: from -45° to 0 to +45°.

Equipped with:

• carriage with two adjustable ball-bearings
• goniometric square
• side extensions for big size of tiles.
• Cutting length up to 1630 mm
• Size tile for diagonal cutting: 1150×1150 mm

STRUCTURE

Strong body made in aluminium draw-plate to get rigidity and lightness at the same time.

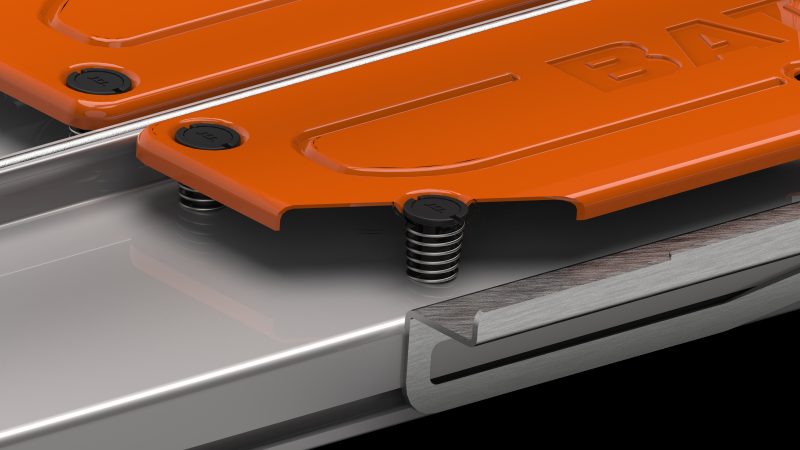

WORKTOPS

The worktops have been updated: special springs (4 x each side) guarantee rapid separation of the cut part and an excellent finish result

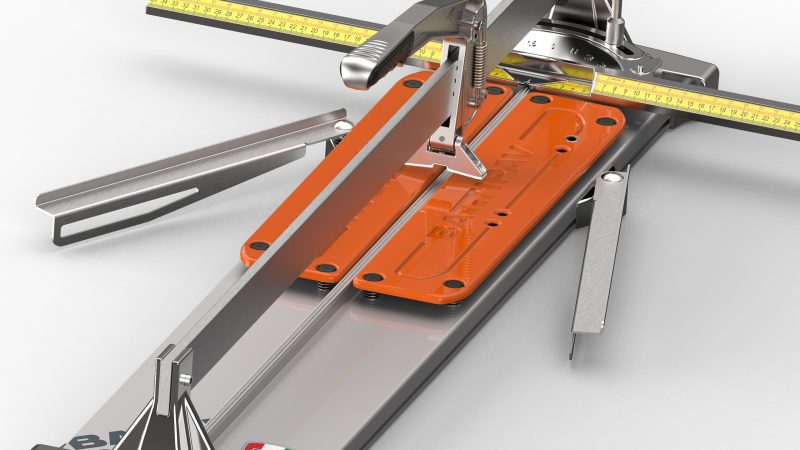

SIDE EXTENSIONS

A new design of the lateral supports ensures great stability when cutting large formats. Particularly long in extension make the cut comfortable and safe.

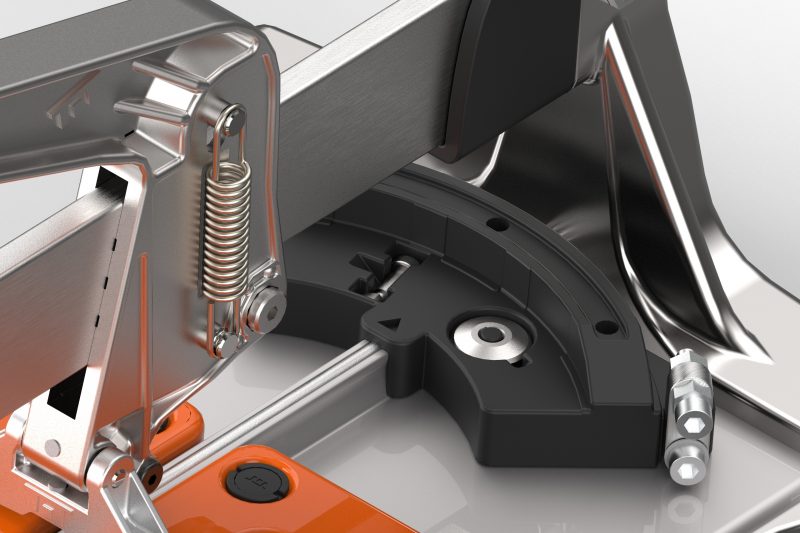

GONIOMETRIC SQUARE

The goniometric square is a monobloc, very rigid and stable, a lectern shape on which the centimeter scale is positioned; so you have a direct reading of the measurement to be cut.

EXTRA SPARE WHEEL

One more extra set spare wheel included. You never run out.

CARRIAGE

The carriage in aluminium is equipped with two ball-bearings one on the top and one on the bottom of the rail for a perfect sliding and top precision.

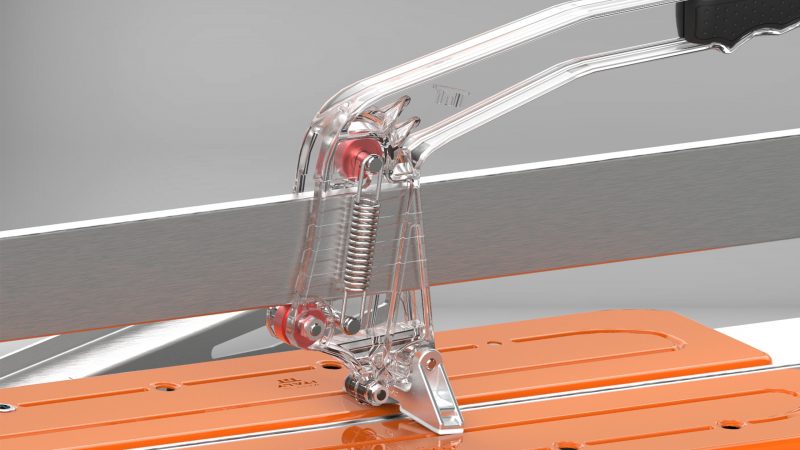

ALUMINIUM MAGNETIC FOOT

The breaking foot in aluminum with a white rubber protection to avoid scratches. A magnet placed on the foot allows, by lifting it, to make the whole incision with a single move. Then, by lifting the handle, the foot is immediately ready for separation. Speed and precision: 1 second operation!
